Meter Milliameter for R1084

This unit provides a simple method of checking all the valves in the R1084. By plugging the meter into test jacks enables the
current drawn by all or some of the stages in the receiver to be measured. There are multiplication factors to be applied to
specific jacks in order to get the actual current in milliamperes. For details of this, refer to AP1186, Section 3, Chapter 3,
Para 56 onwards.

Sec/Ref: 10A/8398

Meter<br>Milliameter for R1084

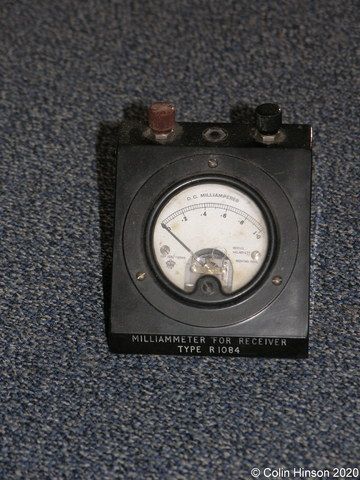

Meter Milliameter for R1084 (Photograph Number 0047)
