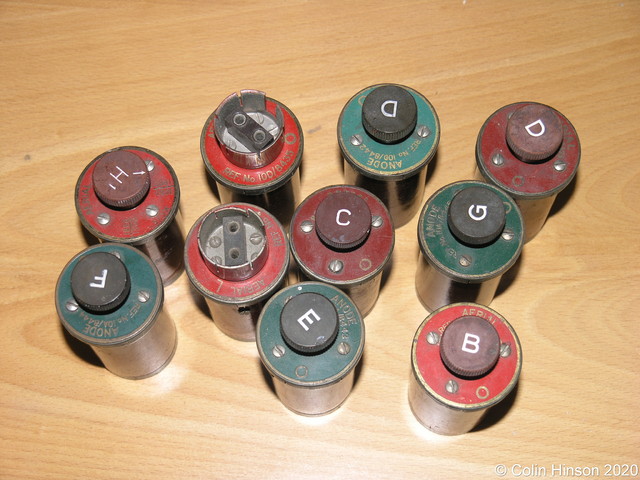

Receiver Type R1082 Coils	Receiver Type R1084	Receiver Type R1116A	Receiver Type R1124D	Receiver Type R1125A

Receiver Type R1116A

The R1116 dates back to the 1930s and was built to be used along with the T1115 transmitter. The sets were installed/fitted
in the Sunderland Flying boats and the well known Fairy Swordfish aircraft in the late 1930s, and into the early years of WWII.

The R1116 is a battery operated, double-superhet, eight-valve receiver, with frequency ranges of 142 kc/s to 1600 kc/s and 2 Mc/s to
20 Mc/s. Used for RT and CW communications, it also had Direction Finding (D/F) facilities.

The power required to operate the R1116 was derived from batteries, delivering voltages of HT=120 volts, Grid-bias=10.5 volts,
and 2 volts for the filaments of the valves.

Receiver Type R1116A (Photograph Number 0245)

Click on the image to get the full size image.
